CNC Concrete Reinforcing Wire Mesh Welding Machine For 5--12mm

Brand Name : MLG

Model Number : MLG-FP--2500A

Certification : CE

Place of Origin : Hebei China

MOQ : One set

Supply Ability : 4--5 sets per month

Delivery Time : 30 days after receiving deposit or L/C.

Packaging Details : Covered by plastic film put into 40 ft container

Product name : concrete reinforcing mesh welding machine

Wire diameter : 5--12mm

Width of mesh : Max 2500mm

Mesh size : 100*100--300*300mm

Length of mesh : Max 6m

Capacity : 270--300m per hour

Contact Now

CNC Concrete Reinforcing Wire Mesh Welding Machine For 5--12mm

Product introduction

1. This machine adopts synchronous control technique. The center-control and welding time are composed of PLC program system.

2. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly.

3. The hopper adopts the step motor; brake motor wheels; pulling the wire net is controlled by the servo motor.

4. The line wire and the weft wire are pre-straightened and pre-cut.

5. The longitude wires can be adjustable and cross wire distance can be adjustable according to input the data what you want. The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet.

6. The finished product fence panel is smooth; the error of opposite angle line is small.

Technical parameter

Model	MLG-FP-2500A	Welding speed	40--60 times/min
Wire diameter	5-12mm	Welding electrodes	24pcs
Longitude wire space	100-300mm	Longitude wire feeding	Pre-straightened&pre-cut
Cross wire space	100-300mm	Cross wire feeding	Pre-straightened&pre-cut
Mesh width	Max.2.5m	Overall Size	123.11.7m
Rated electrical power	125kva*12 pcs	Weight	8700kg

Note:The line wires and cross wires should be pre-straightened and pre-cut.

CNC Concrete Reinforcing Wire Mesh Welding Machine For 5--12mm

Product Tags:

rebar mesh welding machine

rebar straightening cutting machine

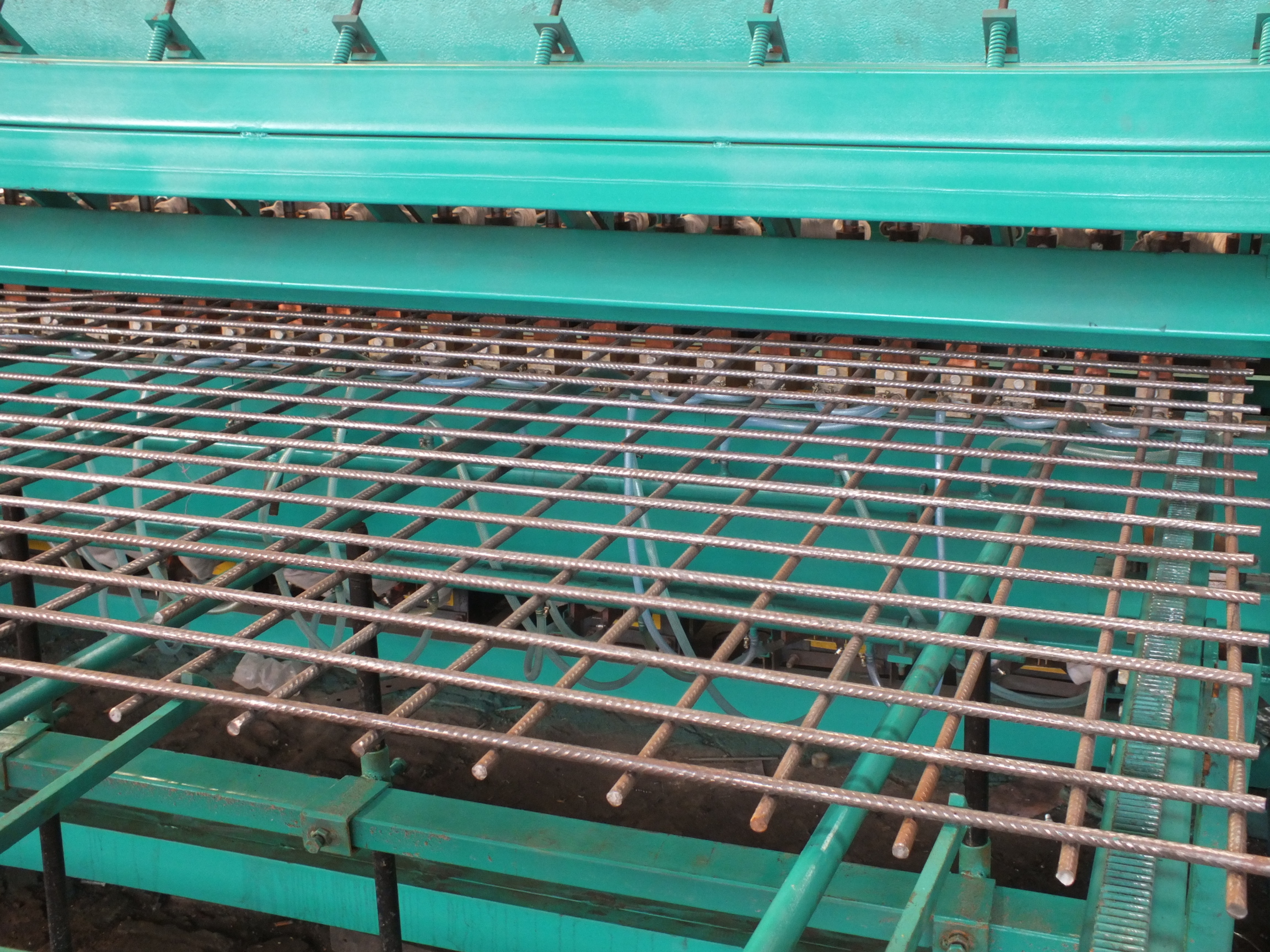

CNC Concrete Reinforcing Wire Mesh Welding Machine For 5--12mm Images
